| Model | Size L*W*H(mm) | Rated Voltage (V) | 2m Output Current (Arms) | 60m Output Current (Arms) |
|---|---|---|---|---|

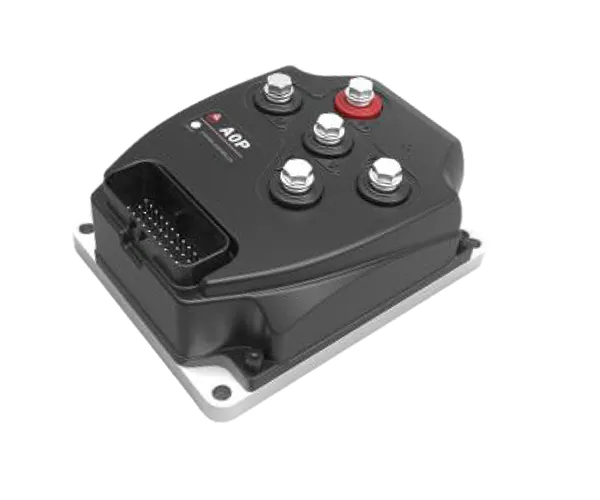

| A0P A0E | 155.5*120.5*59.5 | |||
| 24 | 250 | 110 | ||
| 24 | 200 | 90 | ||
| 36/48 | 250 | 110 | ||
| 36/48 | 200 | 90 | ||
| Communication Type: CAN/Serial EN1175-2020: A0P (NO) A0E (YES) | ||||
| Model | Size L*W*H(mm) | Rated Voltage (V) | 2m Output Current (Arms) | 60m Output Current (Arms) |
|---|---|---|---|---|

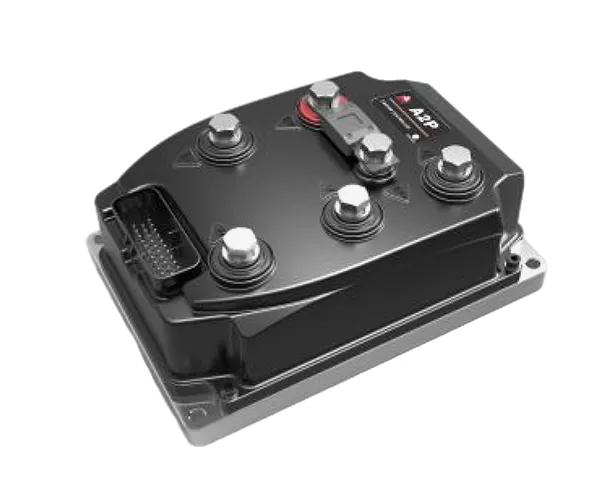

| A2P A2E | 207.5*144*77 | |||
| 36/48 | 550 | 250 | ||
| 36/48 | 450 | 200 | ||
| 36/48 | 400 | 175 | ||
| 36/48 | 300 | 130 | ||
| 72 | 400 | 175 | ||
| 72 | 350 | 150 | ||
| 80 | 400 | 175 | ||
| 80 | 350 | 150 | ||
| Communication Type: CAN/Serial EN1175-2020: A2P (NO) A2E(YES) | ||||
| Model | Size L*W*H(mm) | Rated Voltage (V) | 2m Output Current (Arms) | 60m Output Current (Arms) |
|---|---|---|---|---|

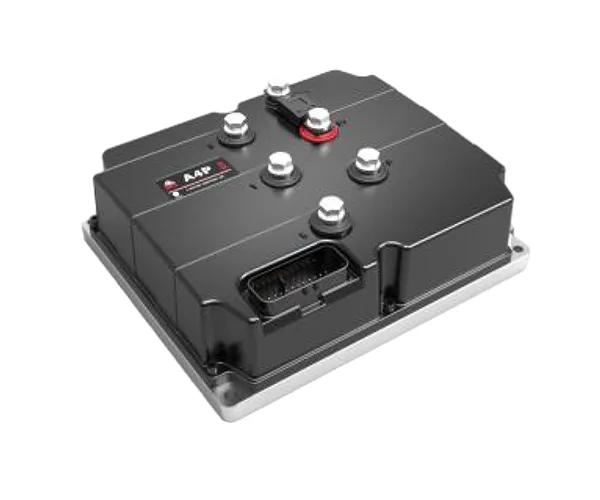

| A4P A4E | 243.5*208.5*86.5 | |||
| 36/48 | 650 | 285 | ||
| 36/48 | 550 | 250 | ||
| 36/48 | 450 | 200 | ||
| 72 | 550 | 250 | ||
| 72 | 450 | 200 | ||
| 80 | 550 | 250 | ||
| 80 | 450 | 200 | ||
| 96 | 550 | 250 | ||
| 96 | 450 | 200 | ||
| Communication Type: CAN/Serial EN1175-2020: A4P (NO) A4E (YES) | ||||
| Model | Size L*W*H(mm) | Rated Voltage (V) | 2m Output Current (Arms) | 60m Output Current (Arms) |
|---|---|---|---|---|

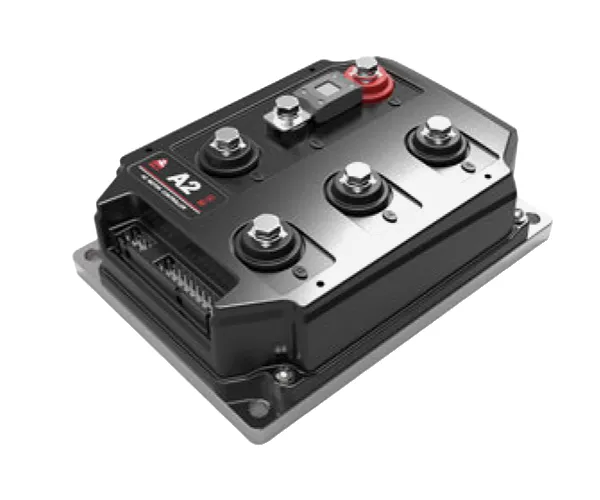

| A2 | 192*142*70 | |||
| 24 | 300 | 130 | ||
| 24 | 225 | 100 | ||
| 36/48 | 300 | 130 | ||
| 36/48 | 225 | 100 | ||
| 72 | 300 | 130 | ||
| 72 | 225 | 100 | ||
| Communication Type: CAN EN1175-2020: NO | ||||
| Model | Size L*W*H(mm) | Rated Voltage (V) | 2m Output Current (Arms) | 60m Output Current (Arms) |
|---|---|---|---|---|

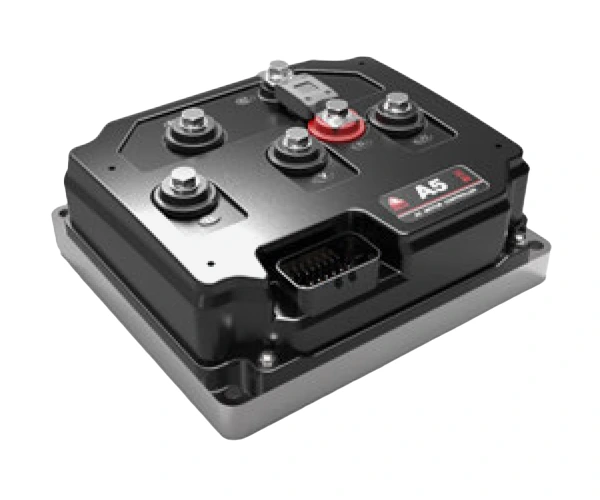

| A5 | 193*175*78 | |||
| 36/48 | 400 | 175 | ||
| 36/48 | 350 | 150 | ||
| 72 | 400 | 175 | ||
| 72 | 350 | 150 | ||
| Communication Type: CAN EN1175-2020: NO | ||||
| Model | Size L*W*H(mm) | Rated Voltage (V) | 2m Output Current (Arms) | 60m Output Current (Arms) |
|---|---|---|---|---|

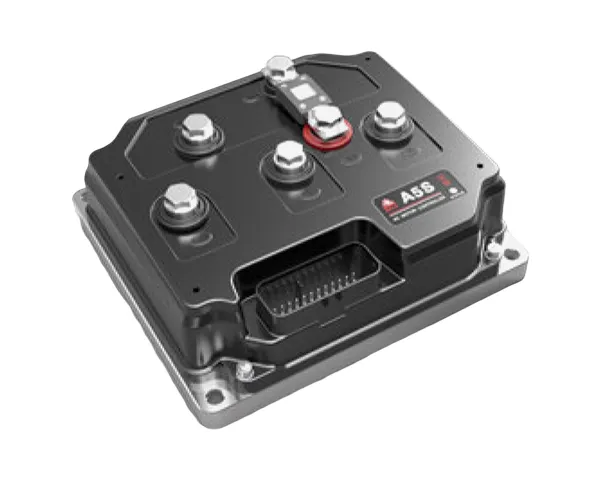

| A5S | 194*175*76.1 | |||
| 36/48 | 400 | 175 | ||
| 36/48 | 350 | 150 | ||
| 72 | 400 | 175 | ||
| 72 | 350 | 150 | ||
| 80 | 400 | 175 | ||
| Communication Type: CAN/Serial EN1175-2020: NO | ||||
| Working Temperature | -30℃~55℃ |
|---|---|
| Ambient Temperature | -40℃~85℃ |
| Mating Motor | ACIM、PMSM、IPM |
| Ingress Protection Rating | IP65 |
| Efficiency | ≥97% |
| Cooling Method | Self-cooling |
| Motor Control Method | Vector Control with Speed Sensor |
