DC Motor Controller

DC Brushed Motor Controller

Model Size L*W*H(mm) Rated Voltage (V) 20S Output Current (A) 2m Output Current (A) 60m Output Current (A)

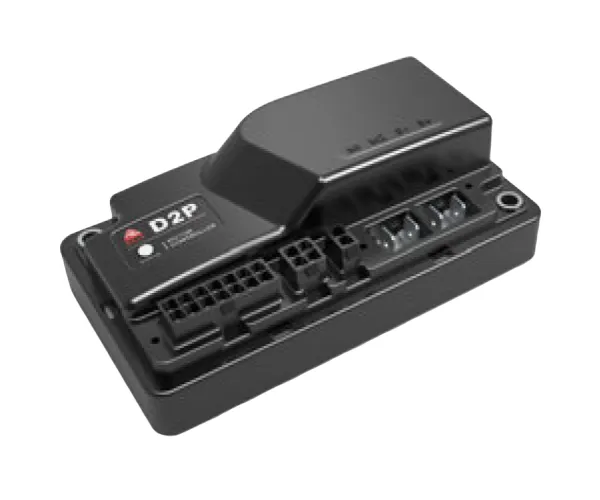

D2P D2PC 131*72*41
24 100 55 35
24 100 55 35
Communication Type:
D2P (Serial) D2PC (CAN) 		EN1175-2020:
NO
Model Size L*W*H(mm) Rated Voltage (V) 20S Output Current (A) 2m Output Current (A) 60m Output Current (A)

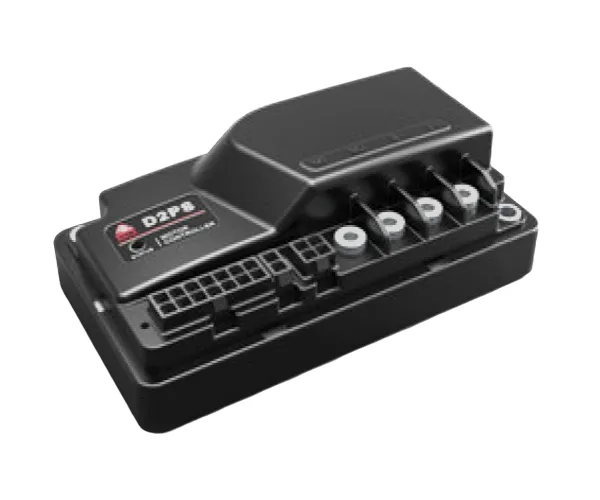

D2PS D2PSC 131*72*41
24 100 60 40
24 100 60 40
Communication Type:
D2PS (Serial) D2PSC (CAN) 		EN1175-2020:
NO
Model Size L*W*H(mm) Rated Voltage (V) 20S Output Current (A) 2m Output Current (A) 60m Output Current (A)

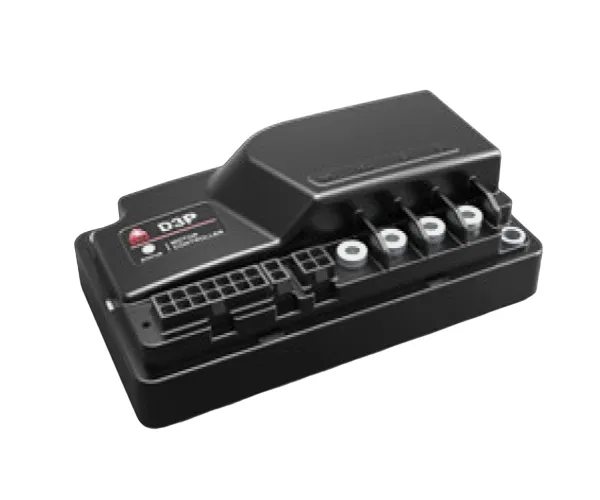

D3P D3PC 131*72*41
24 130 70 45
24 130 70 45
Communication Type:
D3P (Serial) D3PC (CAN) 		EN1175-2020:
NO
Model Size L*W*H(mm) Rated Voltage (V) 20S Output Current (A) 2m Output Current (A) 60m Output Current (A)

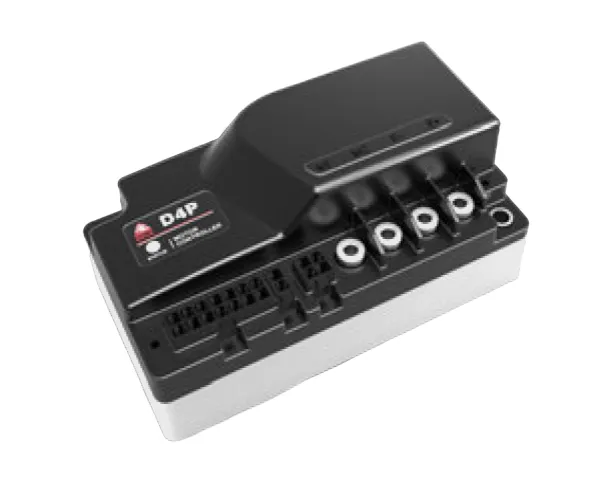

D4P D4PC 129.5*70.5*51
24 150 80 50
24 150 80 50
Communication Type:
D4P (Serial) D4PC (CAN) 		EN1175-2020:
NO
Model Size L*W*H(mm) Rated Voltage (V) 20S Output Current (A) 2m Output Current (A) 60m Output Current (A)

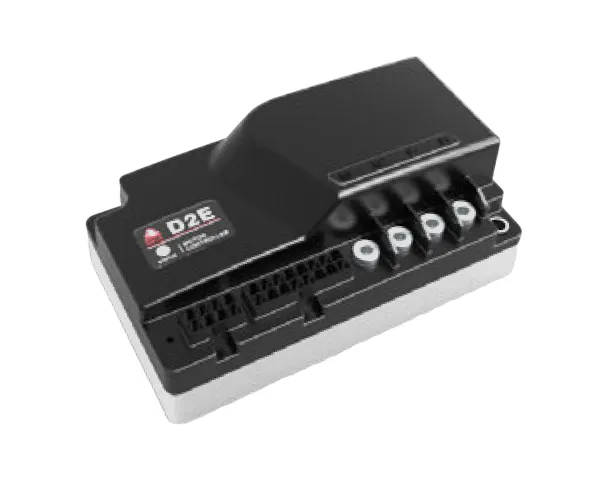

D2E D3E 135.5*75.5*46.5
24 100 60 40
24 130 70 45
Communication Type:
Serial/CAN 		EN1175-2020:
YES

Two-in-One DC Brushed Motor Controller

Model Size L*W*H(mm) Rated Voltage (V) 10S Output Current (A) 2m Output Current (A) 60m Output Current (A)

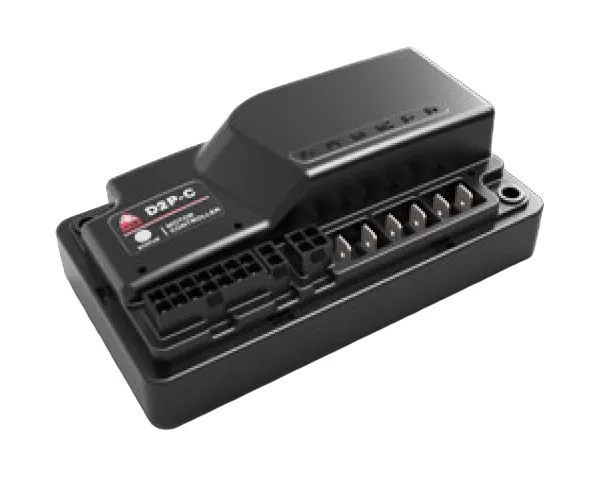

D2P-C 131*72*41.7 24
Traction
100		 Traction
55		 Traction
35
Pump
45		 Pump
20
Communication Type:
Serial 		EN1175-2020:
NO
Model Size L*W*H(mm) Rated Voltage (V) 10S Output Current (A) 2m Output Current (A) 60m Output Current (A)

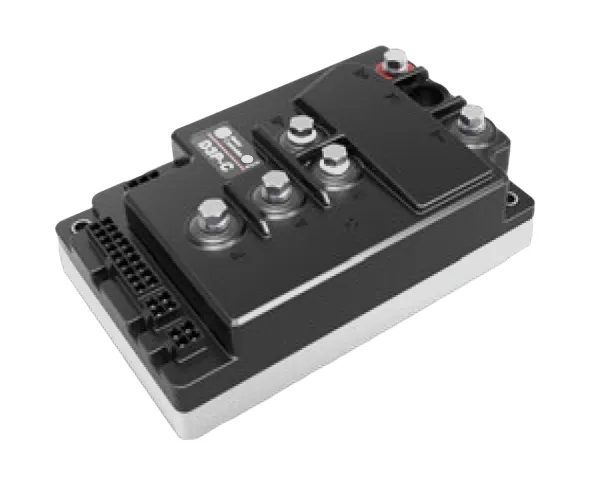

D3P-C 150*95*45.2 24
Traction
100		 Traction
55		 Traction
35
Pump
250
Communication Type:
Serial/CAN 		EN1175-2020:
NO
Model Size L*W*H(mm) Rated Voltage (V) 10S Output Current (A) 2m Output Current (A) 60m Output Current (A)

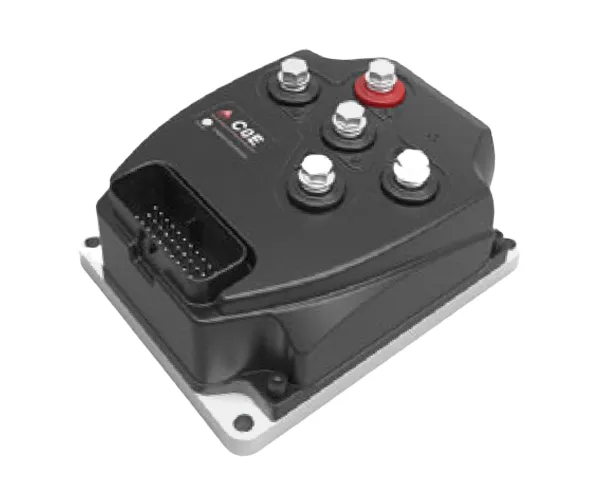

C0E 155.5*120.5*59.5 24
Traction
150		 Traction
120		 Traction
60
Pump
300		 Pump
170
Communication Type:
Serial/CAN 		EN1175-2020:
YES

EPS DC Brushed Motor Controller

Model Size L*W*H(mm) Rated Voltage (V) 20S Output Current (A) 1m Output Current (A) 60m Output Current (A)

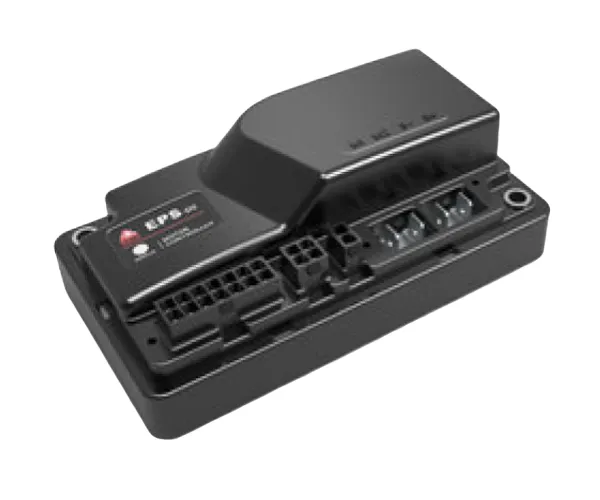

EPS-D0 EPS-D0C 131*72*41
24 70 40 20
24 70 40 20
Communication Type:
EPS-D0 (Serial) EPS-D0C (CAN) 		EN1175-2020:
NO
Model Size L*W*H(mm) Rated Voltage (V) 20S Output Current (A) 1m Output Current (A) 60m Output Current (A)

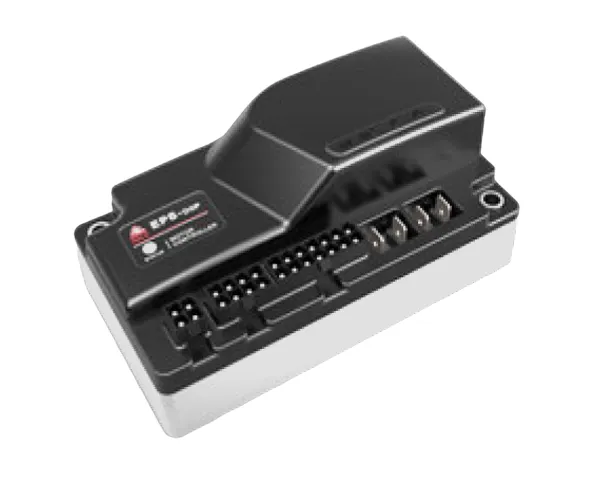

EPS-D0P EPS-D0E 129.5*70.5*51
24 90 60 30
24 90 60 30
Communication Type:
Serial/CAN 		EN1175-2020:
EPS-D0P (NO) EPS-D0E (YES)

BLDC Brushless Motor Controller

Model Size L*W*H(mm) Rated Voltage (V) 10S Output Current (A) 1m Output Current (A) 60m Output Current (A)

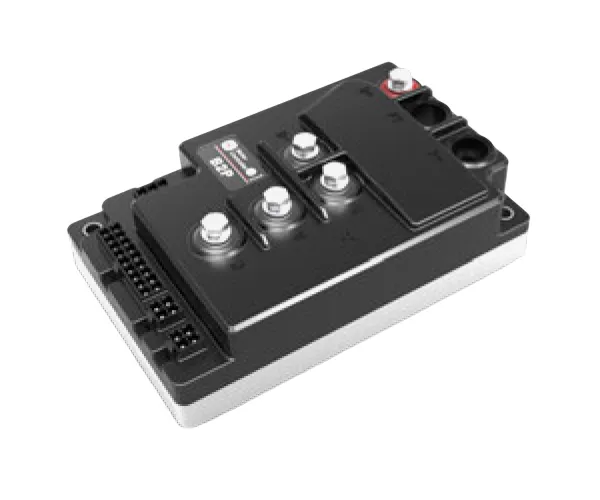

B2P B2E 150*95*45.2
24 120 90 40
36/48 90 70 30
36/48 120 90 40
Communication Type:
Serial/CAN 		EN1175-2020:
B2P (NO) B2E (YES)
Model Size L*W*H(mm) Rated Voltage (V) 10S Output Current (A) 2m Output Current (A) 60m Output Current (A)

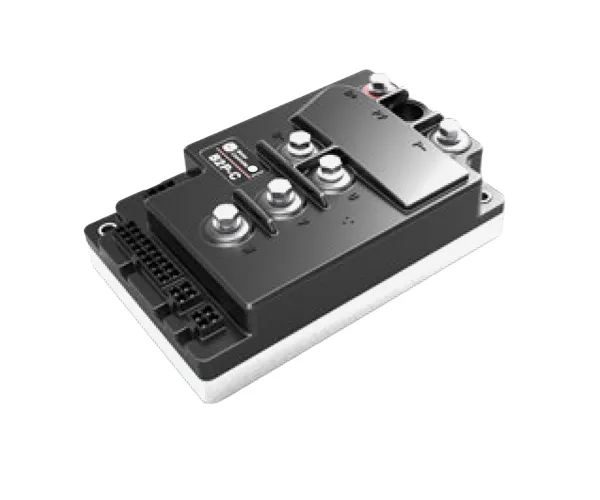

B2P-C B2E-C 150*95*45.2
24 Traction: 120 Traction：90 Traction：40
36/48 Traction：90 Traction：70 Traction：30
36/48 Traction：120 Traction：90 Traction：40
Pump：70 Pump：40
Communication Type:
Serial/CAN 		EN1175-2020:
B2P-C (NO) B2E-C (YES)

Other Parameters

Working Temperature -30℃~55℃
Ambient Temperature -40℃~85℃
Ingress Protection Rating IP65
